How to Setup and Intregrate STUN Server for WebRTC and VoIP with Node.js?

What is Stun Server?

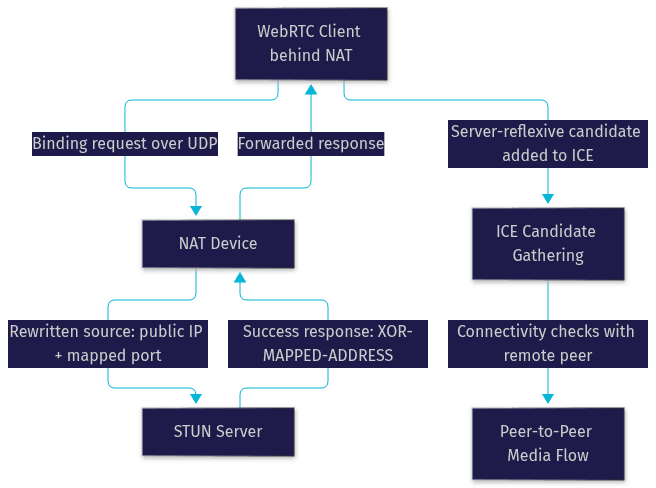

How Stun Server Work?

1. Basic Functionality of Stun Server

1. Discovery: The client sends a request to the STUN server.
2. Response: The STUN server replies with the public IP address and port of the client.
3. NAT Type Determination: By analyzing the response, the client can determine the type of NAT it is behind (e.g., full cone, restricted cone, port-restricted cone, or symmetric NAT).

2. The Role of STUN in NAT Traversal

3. Key Components and Processes of STUN Server

• STUN Client: Integrated into the application (e.g., WebRTC or VoIP client), it initiates the STUN requests.
• STUN Server: A public server that responds to STUN requests, providing the necessary public IP address and port information.
• Binding Request: The primary message sent from the client to the server to discover the public IP and NAT type.
• Binding Response: The server’s reply, which includes the client’s public IP address and port.

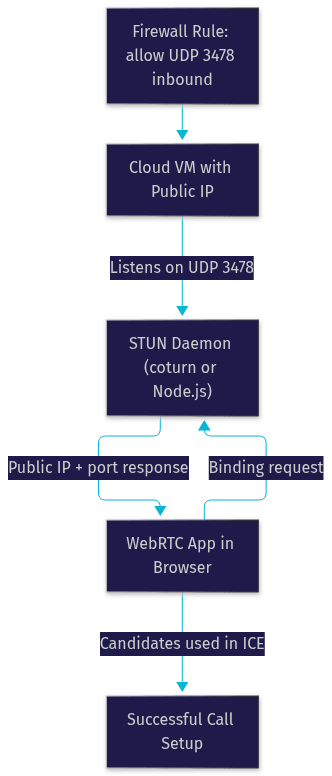

Setting Up a Basic Stun Server

1. Prerequisites and Tools

• A server (physical or virtual) with a public IP address.
• STUN server software (e.g., coturn, stund).
• Basic knowledge of network configuration and firewall settings.

2. Step-by-Step Guide to Installation

Step 1. Choose and Install STUN Software:

• For example, using coturn on a Linux server:

1     sudo apt-get update
2     sudo apt-get install coturn

Step 2. Configure the STUN Server

• Edit the configuration file, typically located at /etc/turnserver.conf:

1     # Add the following lines to configure the STUN server
2     listening-port=3478
3     fingerprint
4     lt-cred-mech

Step 3. Start the STUN Server

1   sudo service coturn start

3. Basic Configuration Settings

• Listening Port: The port on which the server listens for STUN requests (typically 3478).
• Fingerprint: Enables the use of fingerprints in STUN messages for security.
• lt-cred-mech: Enables long-term credential mechanism for user authentication.

Example Code Snippets for Common Platforms

• Installing coturn on Ubuntu:

1  sudo apt-get update
2  sudo apt-get install coturn

• Using stund:

1  # Download and install stund
2  Invoke-WebRequest -Uri http://example.com/stund.zip -OutFile stund.zip
3  Expand-Archive -Path stund.zip -DestinationPath C:\stund
4  cd C:\stund
5  .\stund.exe -v

Role of Stun Server in WebRTC

Integration Stun Servers in WebRTC Applications

1. Peer A sends a STUN request to the STUN server.
2. The STUN server responds with Peer A’s public IP address.
3. Peer A shares this information with Peer B via a signaling server.
4. Peer B repeats the process to discover its public IP address.
5. Both peers attempt to establish a direct connection using the gathered IP addresses.

Step 1: Setting Up the STUN Server

Step 2: Creating the WebRTC Configuration

1const configuration = {
2  iceServers: [
3    {
4      urls: 'stun:stun.l.google.com:19302' // Public STUN server provided by Google
5    }
6  ]
7};
8
9const peerConnection = new RTCPeerConnection(configuration);

Step 3: Handling ICE Candidates

1peerConnection.onicecandidate = event => {
2  if (event.candidate) {
3    // Send the candidate to the remote peer through the signaling server
4    signalingServer.send(JSON.stringify({ 'candidate': event.candidate }));
5  }
6};
7
8// Handling incoming ICE candidates from the remote peer
9signalingServer.onmessage = message => {
10  const data = JSON.parse(message.data);
11  if (data.candidate) {
12    peerConnection.addIceCandidate(new RTCIceCandidate(data.candidate));
13  }
14};

Step 4: Creating and Sending an Offer

1peerConnection.createOffer()
2  .then(offer => peerConnection.setLocalDescription(offer))
3  .then(() => {
4    // Send the offer to the remote peer through the signaling server
5    signalingServer.send(JSON.stringify({ 'offer': peerConnection.localDescription }));
6  });
7
8// Handling incoming offer from the remote peer
9signalingServer.onmessage = message => {
10  const data = JSON.parse(message.data);
11  if (data.offer) {
12    peerConnection.setRemoteDescription(new RTCSessionDescription(data.offer))
13      .then(() => peerConnection.createAnswer())
14      .then(answer => peerConnection.setLocalDescription(answer))
15      .then(() => {
16        // Send the answer back to the remote peer through the signaling server
17        signalingServer.send(JSON.stringify({ 'answer': peerConnection.localDescription }));
18      });
19  }
20};
21
22// Handling incoming answer from the remote peer
23signalingServer.onmessage = message => {
24  const data = JSON.parse(message.data);
25  if (data.answer) {
26    peerConnection.setRemoteDescription(new RTCSessionDescription(data.answer));
27  }
28};

Advanced Stun Server Configurations

1. Customizing STUN Server Settings

• Listening Port Range: Configuring multiple ports to handle increased traffic.
• Authentication Mechanisms: Implementing username and password authentication for secure access.
• Rate Limiting: Preventing abuse by limiting the number of requests per IP address.

2. Optimizing Performance and Security

• Load Balancing: Distributing traffic across multiple STUN servers.
• Caching: Implementing caching mechanisms to reduce server load.

• Encryption: Using Transport Layer Security (TLS) to encrypt STUN messages.
• Access Controls: Restricting access to trusted IP addresses or networks.

3. Troubleshooting Common Issues

• Verify firewall settings to ensure the STUN server is accessible on the configured port.
• Check network configurations to ensure proper routing of STUN requests.

• Monitor server load and adjust resources as needed.
• Implement rate limiting to prevent abuse.
