How to Integrate Video and Audio Calling Features into iOS Apps?

Introduction

Do you want to make your iOS app more engaging for your users so that they can talk in real time within the applications without directing users outside? That means you have to integrate audio and video calling features that are scalable reliable, and secure at the same time. To solve this problem you need a good infrastructure like VideoSDK that matches all the requirements you need. VideoSDK allows you to add video and audio calling to web, Android, and iOS applications. It offers a customizable SDK and REST API for creating expandable video conferencing apps.

In this quickstart guide, we'll take you step-by-step through the process of integrating video and audio calling capabilities into your iOS app, empowering you to create innovative, engaging, and truly connected experiences for your users.

Getting Started with Code!

Prerequisites

iOS 11.0+
Xcode 12.0+
Swift 5.0+

App Architecture

This App will contain two screens:

Join Screen : This screen allows the user to either create a meeting or join a predefined meeting.
Meeting Screen : This screen basically contains local and remote participant views and some meeting controls such as Enable / Disable Mic & Camera and Leave the meeting.

Create New Project

Step 1: Create a new application by selecting Create a new Xcode project

Step 2: Choose App then click Next

Step 3: Add the Product Name and Save the project.

VideoSDK Installation

To install VideoSDK, you must initialize the pod on the project by running the following command.

pod init

It will create the Podfile in your project folder, open that file, and add the dependency for the VideoSDK like below:

pod 'VideoSDKRTC', :git => 'https://github.com/videosdk-live/videosdk-rtc-ios-sdk.git'

then run the below code to install the pod:

pod install

then declare the permissions in Info.plist :

<key>NSCameraUsageDescription</key>
<string>Allow camera access to start video.</string>

<key>NSMicrophoneUsageDescription</key>
<string>Allow microphone access to start audio.</string>

Project Structure

iOSQuickStartDemo
   ├── Models
		├── RoomStruct.swift
	    └── MeetingData.swift
   ├── ViewControllers
		├── StartMeetingViewController.swift
	    └── MeetingViewController.swift
   ├── AppDelegate.swift // Default
   ├── SceneDelegate.swift // Default
   └── APIService
		   └── APIService.swift
   ├── Main.storyboard // Default
   ├── LaunchScreen.storyboard // Default
   └── Info.plist // Default
 Pods
	 └── Podfile

`Main.storyboard` Design

Create models

Create a swift file for MeetingData and RoomStruct class model for setting data in object pattern.

import Foundation
struct MeetingData {
    let token: String
    let name: String
    let meetingId: String
    let micEnabled: Bool
    let cameraEnabled: Bool
}

MeetingData.swift

import Foundation
struct RoomsStruct: Codable {
    let createdAt, updatedAt, roomID: String?
    let links: Links?
    let id: String?
    enum CodingKeys: String, CodingKey {
        case createdAt, updatedAt
        case roomID = "roomId"
        case links, id
    }
}
// MARK: - Links
struct Links: Codable {
    let getRoom, getSession: String?
    enum CodingKeys: String, CodingKey {
        case getRoom = "get_room"
        case getSession = "get_session"
    }
}

RoomStruct.swift

Step-by-Step Integration

Step 1: Get started with APIClient

Before jumping to anything else, we have to write API to generate a unique meetingId. You will require an Auth token, you can generate it using either videosdk-server-api-example or generate it from the Video SDK Dashboard for developers.

import Foundation

let TOKEN_STRING: String = "<AUTH_TOKEN>";

class APIService {

    class func createMeeting(token: String, completion: @escaping (Result<String, Error>) -> Void) {
        let url = URL(string: "https://api.videosdk.live/v2/rooms")!

        var request = URLRequest(url: url)
        request.httpMethod = "POST"
        request.addValue(TOKEN_STRING, forHTTPHeaderField: "authorization")

        URLSession.shared.dataTask(with: request, completionHandler: { (data: Data?, response: URLResponse?, error: Error?) in
            DispatchQueue.main.async {
                if let data = data, let utf8Text = String(data: data, encoding: .utf8)
                {
                    do{
                        let dataArray = try JSONDecoder().decode(RoomsStruct.self,from: data)
                        completion(.success(dataArray.roomID ?? ""))
                    } catch {
                        print("Error while creating a meeting: \(error)")
                        completion(.failure(error))
                    }
                }
            }
        }).resume()
    }
}

APIService.swift

Step 2: Implement Join Screen

The join screen will work as a medium to either schedule a new meeting or join the existing meeting.

import Foundation
import UIKit

class StartMeetingViewController: UIViewController, UITextFieldDelegate {

		private var serverToken = ""

		/// MARK: outlet for create meeting button
		@IBOutlet weak var btnCreateMeeting: UIButton!

		/// MARK: outlet for join meeting button
		@IBOutlet weak var btnJoinMeeting: UIButton!

		/// MARK: outlet for meetingId textfield
		@IBOutlet weak var txtMeetingId: UITextField!

		/// MARK: Initialize the private variable with TOKEN_STRING &
		/// setting the meeting id in the textfield
		override func viewDidLoad() {
		    txtMeetingId.delegate = self
		    serverToken = TOKEN_STRING
		    txtMeetingId.text = "PROVIDE-STATIC-MEETING-ID"
		}

		/// MARK: method for joining meeting through seague named as "StartMeeting"
		/// after validating the serverToken in not empty
		func joinMeeting() {
		    txtMeetingId.resignFirstResponder()

		    if !serverToken.isEmpty {
		        DispatchQueue.main.async {
		            self.dismiss(animated: true) {
		                self.performSegue(withIdentifier: "StartMeeting", sender: nil)
		            }
		        }
		    } else {
				print("Please provide auth token to start the meeting.")
		    }
		}

		/// MARK: outlet for create meeting button tap event
		@IBAction func btnCreateMeetingTapped(_ sender: Any) {
				print("show loader while meeting gets connected with server")
		    joinRoom()
		}

		/// MARK: outlet for join meeting button tap event
		@IBAction func btnJoinMeetingTapped(_ sender: Any) {
		    if((txtMeetingId.text ?? "").isEmpty){

						print("Please provide meeting id to start the meeting.")
		        txtMeetingId.resignFirstResponder()
		    } else {
		        joinMeeting()
		    }
		}

		// MARK: - method for creating room api call and getting meetingId for joining meeting

		func joinRoom() {

		   APIService.createMeeting(token: self.serverToken) { result in
            if case .success(let meetingId) = result {
                DispatchQueue.main.async {
                    self.txtMeetingId.text = meetingId
                    self.joinMeeting()
                }
            }
        }
		}

		/// MARK: preparing to animate to meetingViewController screen
		override func prepare(for segue: UIStoryboardSegue, sender: Any?) {

		    guard let navigation = segue.destination as? UINavigationController,
		          let meetingViewController = navigation.topViewController as? MeetingViewController else {
		          return
		      }

		    meetingViewController.meetingData = MeetingData(
		        token: serverToken,
		        name: txtMeetingId.text ?? "Guest",
		        meetingId: txtMeetingId.text ?? "",
		        micEnabled: true,
		        cameraEnabled: true
		    )
		}
}

StartMeetingViewController.swift

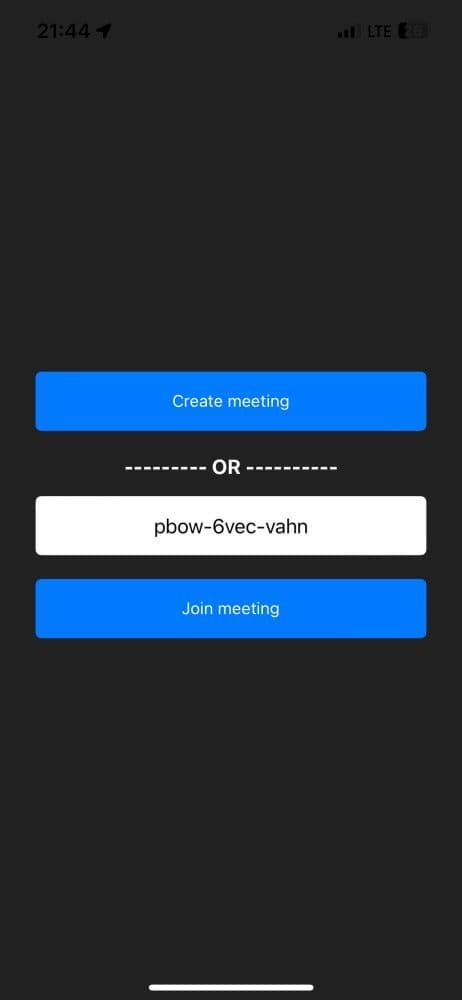

Output

Step 3: Initialize and Join Meeting

Using the provided token and meetingId, we will configure and initialize the meeting in viewDidLoad().

Then, we'll add @IBOutlet for localParticipantVideoView and remoteParticipantVideoView, which can render local and remote participant media respectively.


class MeetingViewController: UIViewController {

import UIKit
import VideoSDKRTC
import WebRTC
import AVFoundation

class MeetingViewController: UIViewController {

    // MARK: - Properties
    // outlet for local participant container view
    @IBOutlet weak var localParticipantViewContainer: UIView!

    // outlet for label for meeting Id
    @IBOutlet weak var lblMeetingId: UILabel!

    // outlet for local participant video view
    @IBOutlet weak var localParticipantVideoView: RTCMTLVideoView!

    // outlet for remote participant video view
    @IBOutlet weak var remoteParticipantVideoView: RTCMTLVideoView!

    // outlet for remote participant no media label
    @IBOutlet weak var lblRemoteParticipantNoMedia: UILabel!

    // outlet for remote participant container view
    @IBOutlet weak var remoteParticipantViewContainer: UIView!

    // outlet for local participant no media label
    @IBOutlet weak var lblLocalParticipantNoMedia: UILabel!

    /// Meeting data - required to start
    var meetingData: MeetingData!

    /// current meeting reference
    private var meeting: Meeting?

    // MARK: - video participants including self to show in UI
    private var participants: [Participant] = []

		// MARK: - Lifecycle Events

		override func viewDidLoad() {
        super.viewDidLoad()
        // configure the VideoSDK with token
        VideoSDK.config(token: meetingData.token)

        // init meeting
        initializeMeeting()

        // set meeting id in button text
        lblMeetingId.text = "Meeting Id: \(meetingData.meetingId)"
	  }

	  override func viewWillAppear(_ animated: Bool) {
	      super.viewWillAppear(animated)
	      navigationController?.navigationBar.isHidden = true
	  }

    override func viewWillDisappear(_ animated: Bool) {
        super.viewWillDisappear(animated)
        navigationController?.navigationBar.isHidden = false
        NotificationCenter.default.removeObserver(self)
    }

		// MARK: - Meeting

		private func initializeMeeting() {

		    // Initialize the VideoSDK
		    meeting = VideoSDK.initMeeting(
		        meetingId: meetingData.meetingId,
		        participantName: meetingData.name,
		        micEnabled: meetingData.micEnabled,
		        webcamEnabled: meetingData.cameraEnabled
		    )

		    // Adding the listener to meeting
		    meeting?.addEventListener(self)

		    // joining the meeting
		    meeting?.join()
		}
}

MeetingViewController.swift

Step 4: Implement Controls

After initializing the meeting in the previous step. We will now add @IBOutlet for btnLeave, btnToggleVideo and btnToggleMic which can control the media in meetings.


class MeetingViewController: UIViewController {

...

    // outlet for leave button
    @IBOutlet weak var btnLeave: UIButton!

    // outlet for toggle video button
    @IBOutlet weak var btnToggleVideo: UIButton!

    // outlet for toggle audio button
    @IBOutlet weak var btnToggleMic: UIButton!

    // bool for mic
    var micEnabled = true
    // bool for video
    var videoEnabled = true


    // outlet for leave button click event
    @IBAction func btnLeaveTapped(_ sender: Any) {
            DispatchQueue.main.async {
                self.meeting?.leave()
                self.dismiss(animated: true)
            }
        }

    // outlet for toggle mic button click event
    @IBAction func btnToggleMicTapped(_ sender: Any) {
        if micEnabled {
            micEnabled = !micEnabled // false
            self.meeting?.muteMic()
        } else {
            micEnabled = !micEnabled // true
            self.meeting?.unmuteMic()
        }
    }

    // outlet for toggle video button click event
    @IBAction func btnToggleVideoTapped(_ sender: Any) {
        if videoEnabled {
            videoEnabled = !videoEnabled // false
            self.meeting?.disableWebcam()
        } else {
            videoEnabled = !videoEnabled // true
            self.meeting?.enableWebcam()
        }
    }

...

}

MeetingViewController.swift

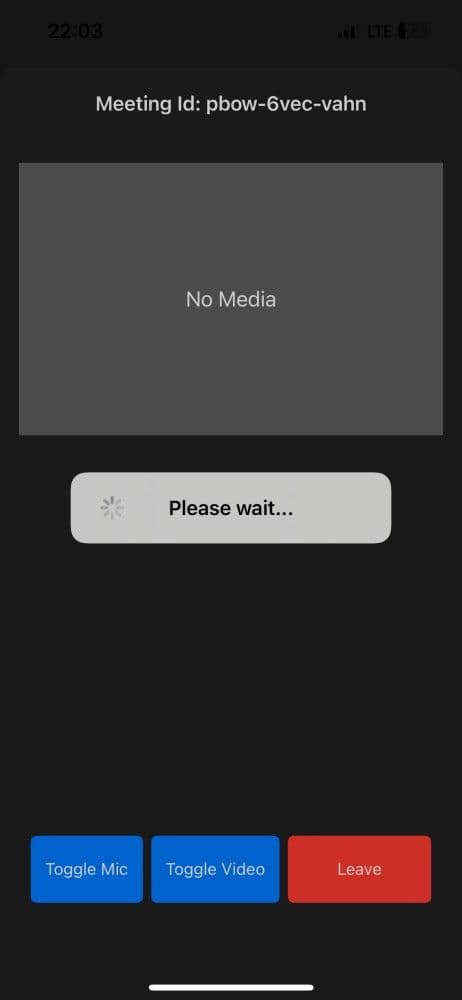

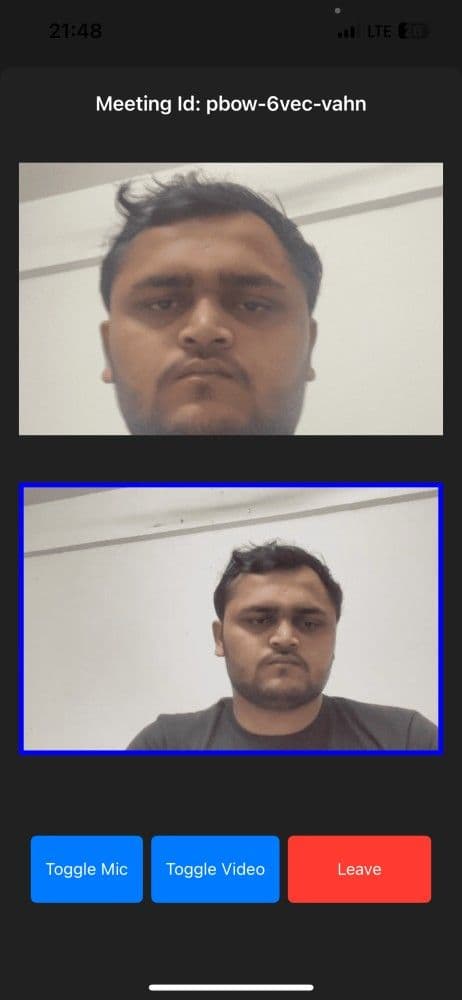

Output

Step 5 : Implementing MeetingEventListener

In this step, we'll create an extension for the MeetingViewController that implements the MeetingEventListener, which implements the onMeetingJoined, onMeetingLeft, onParticipantJoined, onParticipantLeft, onParticipantChanged, onSpeakerChanged, etc. methods.


class MeetingViewController: UIViewController {

...

extension MeetingViewController: MeetingEventListener {

		/// Meeting started
		func onMeetingJoined() {

		    // handle local participant on start
		    guard let localParticipant = self.meeting?.localParticipant else { return }
		    // add to list
		    participants.append(localParticipant)

		    // add event listener
		    localParticipant.addEventListener(self)

		    localParticipant.setQuality(.high)

		    if(localParticipant.isLocal){
		        self.localParticipantViewContainer.isHidden = false
		    } else {
		        self.remoteParticipantViewContainer.isHidden = false
		    }
		}

		/// Meeting ended
		func onMeetingLeft() {
		    // remove listeners
		    meeting?.localParticipant.removeEventListener(self)
		    meeting?.removeEventListener(self)
		}

		/// A new participant joined
		func onParticipantJoined(_ participant: Participant) {
		    participants.append(participant)

		    // add listener
		    participant.addEventListener(self)

		    participant.setQuality(.high)

		    if(participant.isLocal){
		        self.localParticipantViewContainer.isHidden = false
		    } else {
		        self.remoteParticipantViewContainer.isHidden = false
		    }
		}

		/// A participant left from the meeting
		/// - Parameter participant: participant object
		func onParticipantLeft(_ participant: Participant) {
		    participant.removeEventListener(self)
		    guard let index = self.participants.firstIndex(where: { $0.id == participant.id }) else {
		        return
		    }
		    // remove participant from list
		    participants.remove(at: index)
		    // hide from ui
		    UIView.animate(withDuration: 0.5){
		        if(!participant.isLocal){
		            self.remoteParticipantViewContainer.isHidden = true
		        }
		    }
		}

		/// Called when speaker is changed
		/// - Parameter participantId: participant id of the speaker, nil when no one is speaking.
		func onSpeakerChanged(participantId: String?) {

		    // show indication for active speaker
		    if let participant = participants.first(where: { $0.id == participantId }) {
		        self.showActiveSpeakerIndicator(participant.isLocal ? localParticipantViewContainer : remoteParticipantViewContainer, true)
		    }

		    // hide indication for others participants
		    let otherParticipants = participants.filter { $0.id != participantId }
		    for participant in otherParticipants {
		        if participants.count > 1 && participant.isLocal {
		            showActiveSpeakerIndicator(localParticipantViewContainer, false)
		        } else {
		            showActiveSpeakerIndicator(remoteParticipantViewContainer, false)
		        }
		    }
		}

		func showActiveSpeakerIndicator(_ view: UIView, _ show: Bool) {
		    view.layer.borderWidth = 4.0
		    view.layer.borderColor = show ? UIColor.blue.cgColor : UIColor.clear.cgColor
		}

}

...

MeetingViewController.swift

Step 6: Implementing ParticipantEventListener

In this stage, we'll add an extension for the MeetingViewController that implements the ParticipantEventListener, which implements the onStreamEnabled and onStreamDisabled methods for the audio and video of MediaStreams enabled or disabled.

The function updateUI is frequently used to control or modify the user interface (enable/disable camera & mic) by the MediaStream state.

class MeetingViewController: UIViewController {

...

extension MeetingViewController: ParticipantEventListener {

		/// Participant has enabled mic, video or screenshare
		/// - Parameters:
		///   - stream: enabled stream object
		///   - participant: participant object
		func onStreamEnabled(_ stream: MediaStream, forParticipant participant: Participant) {
		    updateUI(participant: participant, forStream: stream, enabled: true)
		}

		/// Participant has disabled mic, video or screenshare
		/// - Parameters:
		///   - stream: disabled stream object
		///   - participant: participant object
		func onStreamDisabled(_ stream: MediaStream, forParticipant participant: Participant) {
		    updateUI(participant: participant, forStream: stream, enabled: false)
		}
}

private extension MeetingViewController {

    func updateUI(participant: Participant, forStream stream: MediaStream, enabled: Bool) { // true
        switch stream.kind {
        case .state(value: .video):
            if let videotrack = stream.track as? RTCVideoTrack {
                if enabled {
                    DispatchQueue.main.async {
                        UIView.animate(withDuration: 0.5){
                            if(participant.isLocal){
                                self.localParticipantViewContainer.isHidden =   false
                                self.localParticipantVideoView.isHidden = false
                                self.localParticipantVideoView.videoContentMode = .scaleAspectFill
                                self.localParticipantViewContainer.bringSubviewToFront(self.localParticipantVideoView)
                                videotrack.add(self.localParticipantVideoView)
                                self.lblLocalParticipantNoMedia.isHidden = true
                            } else {
                                self.remoteParticipantViewContainer.isHidden = false
                                self.remoteParticipantVideoView.isHidden = false
                                self.remoteParticipantVideoView.videoContentMode = .scaleAspectFill
                                self.remoteParticipantViewContainer.bringSubviewToFront(self.remoteParticipantVideoView)
                                videotrack.add(self.remoteParticipantVideoView)
                                self.lblRemoteParticipantNoMedia.isHidden = true
                            }
                        }
                    }
                } else {
                    UIView.animate(withDuration: 0.5){
                        if(participant.isLocal){
                            self.localParticipantViewContainer.isHidden = false
                            self.localParticipantVideoView.isHidden = true
                            self.lblLocalParticipantNoMedia.isHidden = false
                            videotrack.remove(self.localParticipantVideoView)
                        } else {
                            self.remoteParticipantViewContainer.isHidden = false
                            self.remoteParticipantVideoView.isHidden = true
                            self.lblRemoteParticipantNoMedia.isHidden = false
                            videotrack.remove(self.remoteParticipantVideoView)
                        }
                    }
                }
            }

        case .state(value: .audio):
            if participant.isLocal {
                localParticipantViewContainer.layer.borderWidth = 4.0
                localParticipantViewContainer.layer.borderColor = enabled ? UIColor.clear.cgColor : UIColor.red.cgColor
            } else {
                remoteParticipantViewContainer.layer.borderWidth = 4.0
                remoteParticipantViewContainer.layer.borderColor = enabled ? UIColor.clear.cgColor : UIColor.red.cgColor
            }
        default:
            break
        }
    }
}

...

MeetingViewController.swift

Output

If you want to explore more, please check out this GitHub Example

Known Issue

Please add the following line to the MeetingViewController.swift file's viewDidLoad method If you get your video out of the container view like the below image.

override func viewDidLoad() {

    localParticipantVideoView.frame = CGRect(x: 10, y: 0, width: localParticipantViewContainer.frame.width, height: localParticipantViewContainer.frame.height)

    localParticipantVideoView.bounds = CGRect(x: 10, y: 0, width: localParticipantViewContainer.frame.width, height: localParticipantViewContainer.frame.height)

    localParticipantVideoView.clipsToBounds = true

    remoteParticipantVideoView.frame = CGRect(x: 10, y: 0, width: remoteParticipantViewContainer.frame.width, height: remoteParticipantViewContainer.frame.height)
    remoteParticipantVideoView.bounds = CGRect(x: 10, y: 0, width: remoteParticipantViewContainer.frame.width, height: remoteParticipantViewContainer.frame.height)
    remoteParticipantVideoView.clipsToBounds = true
}

MeetingViewController.swift

Conclusion

The VideoSDK iOS SDK provides a powerful and flexible platform for integrating high-quality video and audio calling capabilities into iOS applications. By leveraging the VideoSDK platform, developers can focus on building the unique features and user experience of their application, rather than having to tackle the complex technical challenges of building a robust video conferencing system from scratch. The comprehensive set of APIs and tools provided by VideoSDK make it easy to add advanced features like screen sharing, recording, and breakout rooms, allowing developers to create truly compelling video-enabled experiences for their users.

How to Integrate Video and Audio Calling Features into iOS Apps?

Kishan Nakrani

Introduction

Getting Started with Code!

Prerequisites

App Architecture

Create New Project

VideoSDK Installation

Project Structure

`Main.storyboard` Design

Create models

Step-by-Step Integration

Step 1: Get started with APIClient

Step 2: Implement Join Screen

Output

Step 3: Initialize and Join Meeting

Step 4: Implement Controls

Output

Step 5 : Implementing MeetingEventListener

Step 6: Implementing ParticipantEventListener

Output

Known Issue

Conclusion

Additional Source

Let’s build together

Free 10,000 mins every month | No credit card required to start
